Self-dumping semi-trailer
Self-dumping semi-trailer is designed for coal, ore and other bulk cargo, using the back dump mode. The frame is made of high quality manganese plate welding, with high stiffness and strength
Industry attributes
| Lead Time | 10-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | China |
Inquire now
- Product Details
- Online Message
- Related products
product details
Rear Dump Semi Trailer
The rear dump trailer is also called a tipper trailer or tipping trailer. They are used to load sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the The back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate , because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.

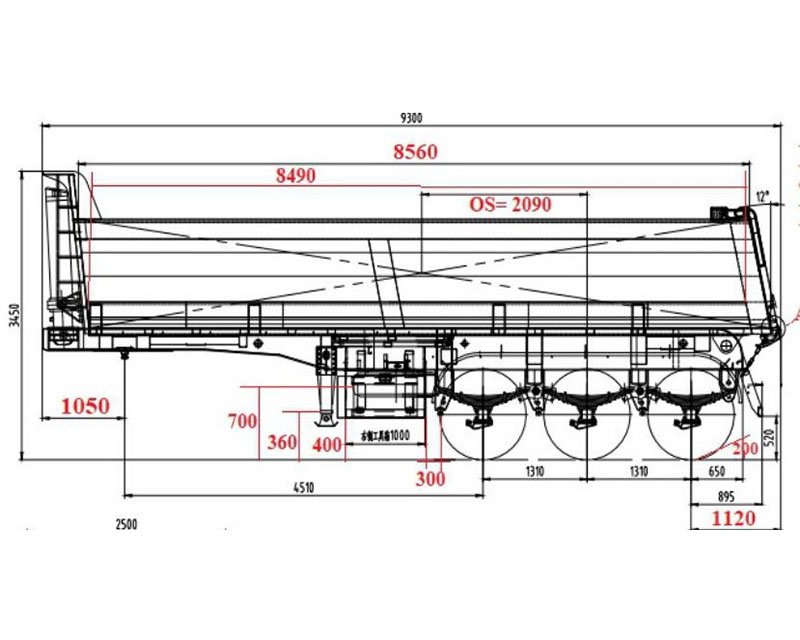

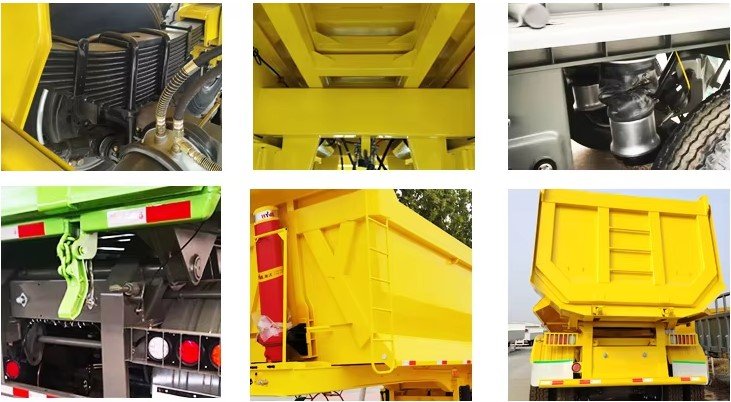

Rear Dump Semi Trailer images

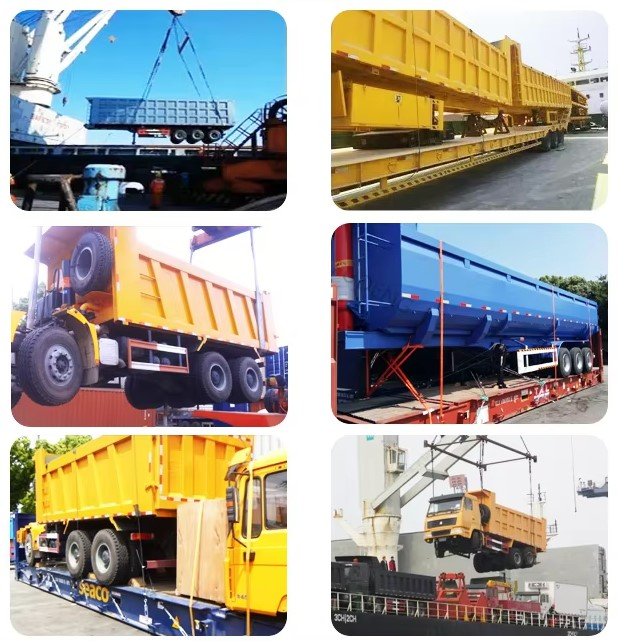

Rear Dump Semi Trailer images
Rear Dump Semi Trailer specification
| Tare Weight | about 9.5T |
| Thickness | Floor8mm ,side6mm stainless steel |
| Material | high tensile steel |
| Landing Gear | 8 double big chamber |
| Dimension | 10300*2500*3900mm |
| Axle | 16tons fuhua brand ，4 axles |
| Loading Capacity(cbm) | 42cbm / 80tons |
| Box size | 9600*2400*1800mm |
| King Pin | JOST 2” or 3.5”inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Rim | 8.25 16pieces |
| Braking System | Brake System Dual Line |
| Tire | 1200R20 16 pieces |
| Hydraulic cylinder | One set of Hydraulic |
| Wiring | 24V, 6 lines |
| Main Beam | |
| Mild Alloy (16Mn) by Automatic submerged arc welding.The height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, | |
| middle plate is 8+8mm. | |
| Lights & Reflectors | |
| Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Air/Elec. Connector | |
| ISO standard air connector, 24V 7 pin plug socket | |
| Paint | |
| Sand blasting before painting, color upon request | |
