12 set twist lock flatbed semi trailer
Wosheng Flatbed semi trailer is suitable for transporting large, heavy goods such as containers, steel, building materials, machinery and equipment. It has strong load capacity, convenient loading and unloading
Industry attributes
| Lead Time | 15-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | China |
Inquire now
- Product Details
- Online Message
- Related products
product details

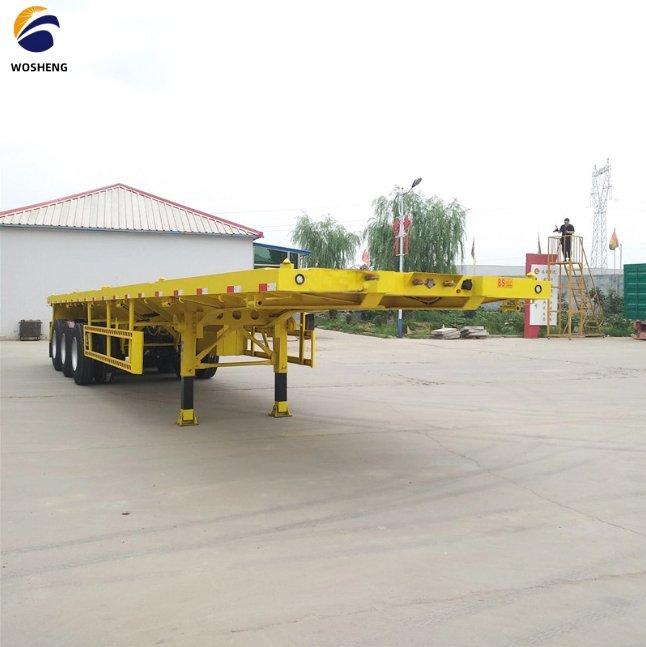

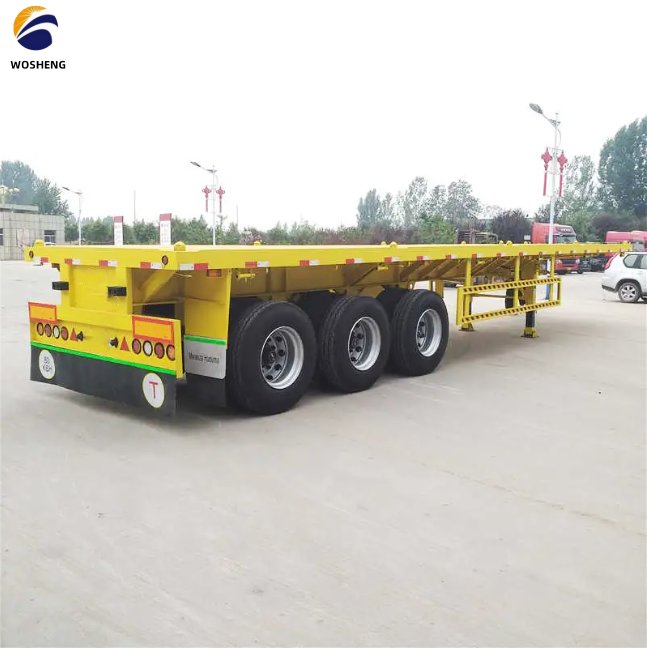

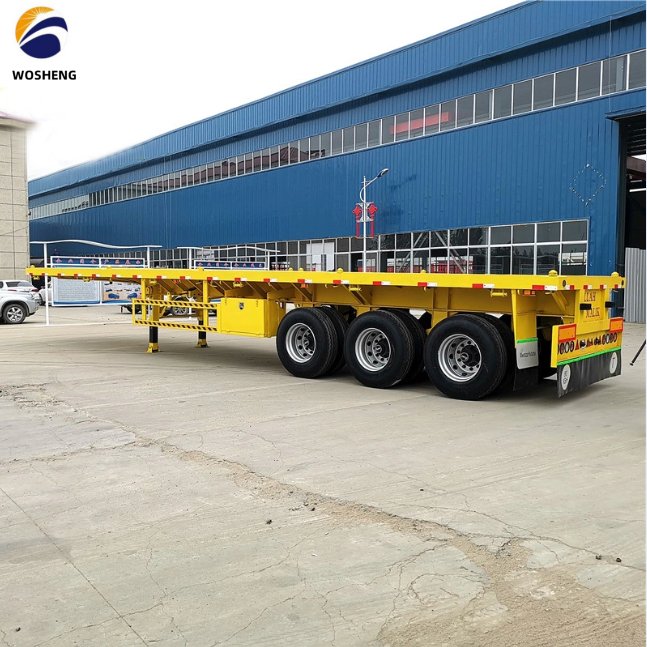

Flatbed Semi Trailer
The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.

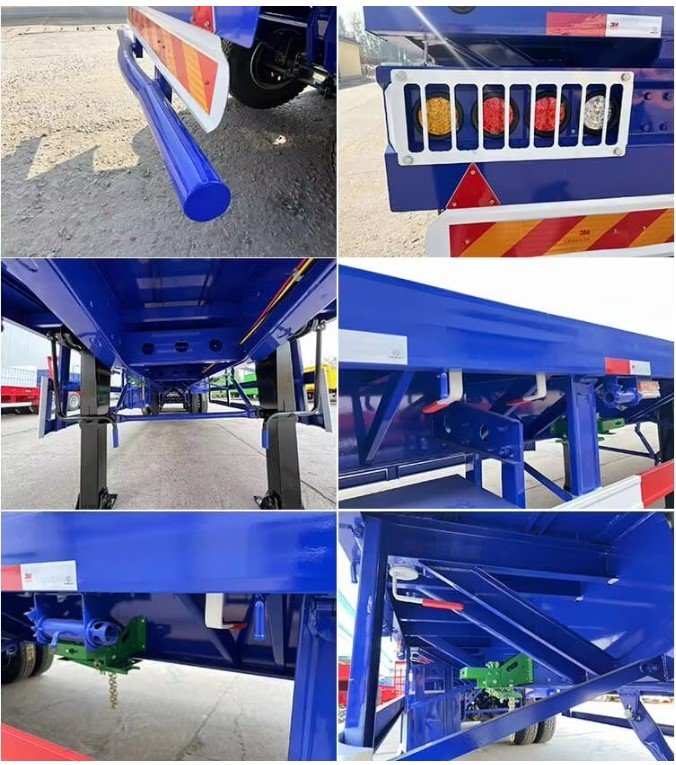

Details
Packing and Delivery

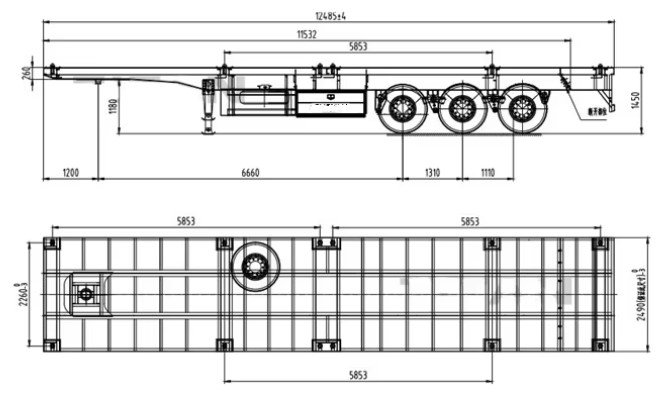

Product specification
| Flatbed Semi Trailer Specification | ||
| 20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER |
| Brand: Wosheng | Brand: Wosheng | Brand: Wosheng |
| 20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading |
| Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 80 Tons |
| Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes |
| Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes |
| Main Beam | ||
| Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm |
| Height: 500mm | Height: 500mm | Height: 500mm |
| Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm |
| Product Dimension | ||
| L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm |
| Axles | ||
| 3 Axles *13/16 Ton | 3 Axles *13/16 Ton | 3 Axles *13/16 Ton |
| FUWA/BPW/Other | FUWA/BPW/Other | FUWA/BPW/Other |
| Tire | ||
| 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) |
| Linglong/Triangle/Double-Coin/Bridgestone/ | Linglong/Triangle/Double-Coin/Bridgestone/ | Linglong/Triangle/Double-Coin/Bridgestone/ |
| Other Brand | Other Brand | Other Brand |
| Rim | ||
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs |
| King Pin | ||
| 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand |
| Landing Gear | ||
| 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand |
| Twist Lock | ||
| 4 Sets | 12 Sets | 12 Sets |
| Vehicle Painting | ||
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
